VanotCine Frequency Generator
Only machine
Sale price
£54.00
Regular price
£118.00
Skip to product information
Delivery & Returns
Delivery:
Orders are dispatched within 1–3 business days UK delivery takes 5–7 business days, though many orders arrive sooner as some products ship from our UK warehouse. Items shipped from our EU warehouse may take slightly longer.
International delivery takes 7–12 business days.
Tracking numbers are provided once your order is dispatched. Fast shipping is available on selected products and shown at checkout.
Returns:
You can request a return or refund within 30 days of delivery. Items must be returned in their original, sealable packaging and approved before being sent back. In most cases, we provide a Royal Mail return label. Refunds are issued to the original payment

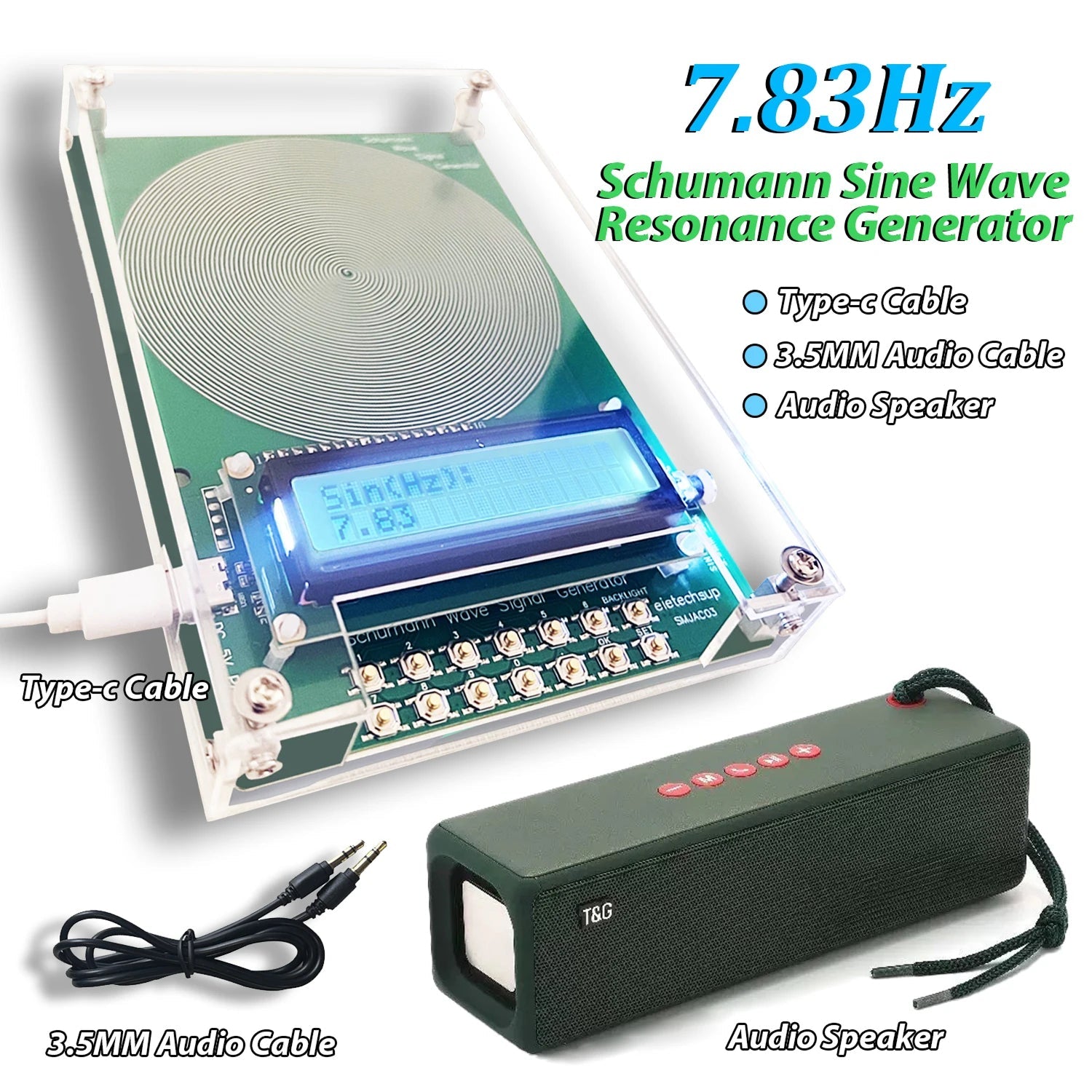

VanotCine Frequency Generator – Programmable 0.01Hz–100kHz Frequency Generator with 7.83Hz Schumann Resonance, Pure Sine Wave Output & Type-C Power
Generate Accurate Frequencies with the VanotCine Frequency Generator
Whether you're conducting laboratory experiments, electronics testing, educational demonstrations or audio frequency research, the VanotCine Frequency Generator delivers highly stable and programmable signal generation with exceptional precision. Featuring a programmable frequency range from 0.01Hz to 100kHz, default 7.83Hz Schumann resonance preset, pure sine wave output, low-temperature drift crystal oscillators, high-precision DAC technology, 2.9-inch display, Type-C power input, and wide DC 4–15V compatibility, the VanotCine Frequency Generator is designed for reliable long-term performance.
Built with precision components and digital frequency control, the VanotCine Frequency Generator provides accurate, stable frequency generation for research, testing, education and experimental applications.
Why Choose the VanotCine Frequency Generator?
Professional Frequency Control with Exceptional Stability
Unlike fixed-frequency generators, the VanotCine Frequency Generator allows precise frequency adjustment across an ultra-wide range while maintaining clean signal quality and excellent long-term stability.

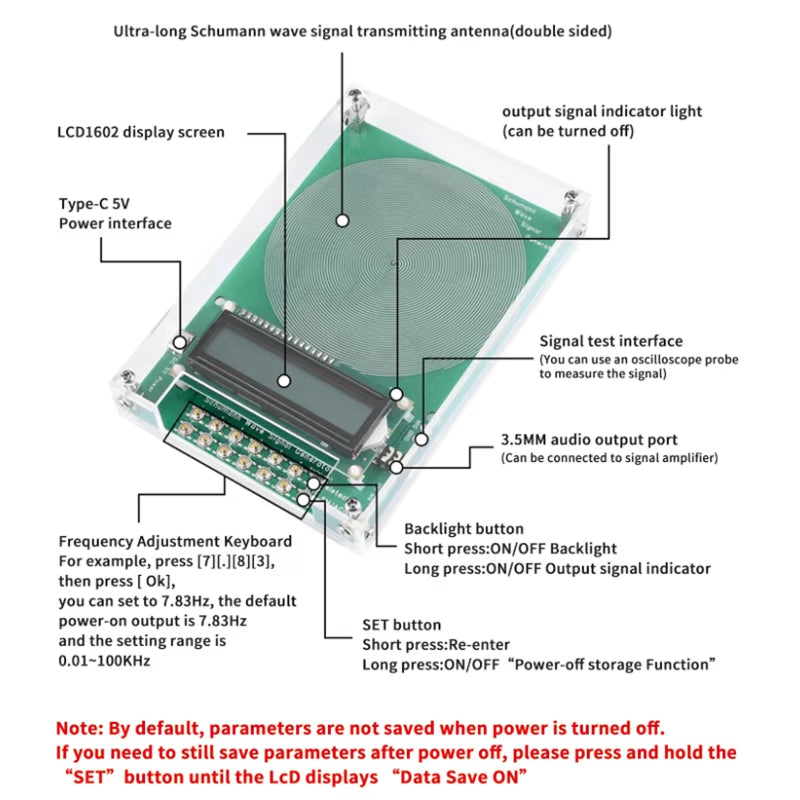

Key Features
-
Programmable frequency range: 0.01Hz–100kHz
-
Default 7.83Hz frequency preset
-
Pure sine wave signal output
-
High-precision DAC dedicated chip
-
Low-temperature drift crystal oscillators
-
Digital crystal oscillator reference
-
2.9-inch monitoring display
-
Type-C USB power interface
-
DC 4–15V input compatibility
-
Protective acrylic enclosure
Ultra-Wide Programmable Frequency Range
One Device for Multiple Applications
The VanotCine Frequency Generator offers precise frequency adjustment from 0.01Hz to 100kHz, allowing flexible use across numerous electronic, laboratory and educational environments.
Suitable for:
-
Electronics testing
-
Signal generation
-
Educational demonstrations
-
Laboratory experiments
-
Audio testing
-
Prototype development
-
Research applications
The wide operating range eliminates the need for multiple dedicated generators.
Default 7.83Hz Frequency Preset
Quick Access to a Common Reference Frequency
For users requiring immediate access to a 7.83Hz preset, the VanotCine Frequency Generator includes this value as its default startup frequency while allowing instant adjustment to any other supported frequency.
This makes setup quicker while maintaining complete flexibility for customised frequency generation.

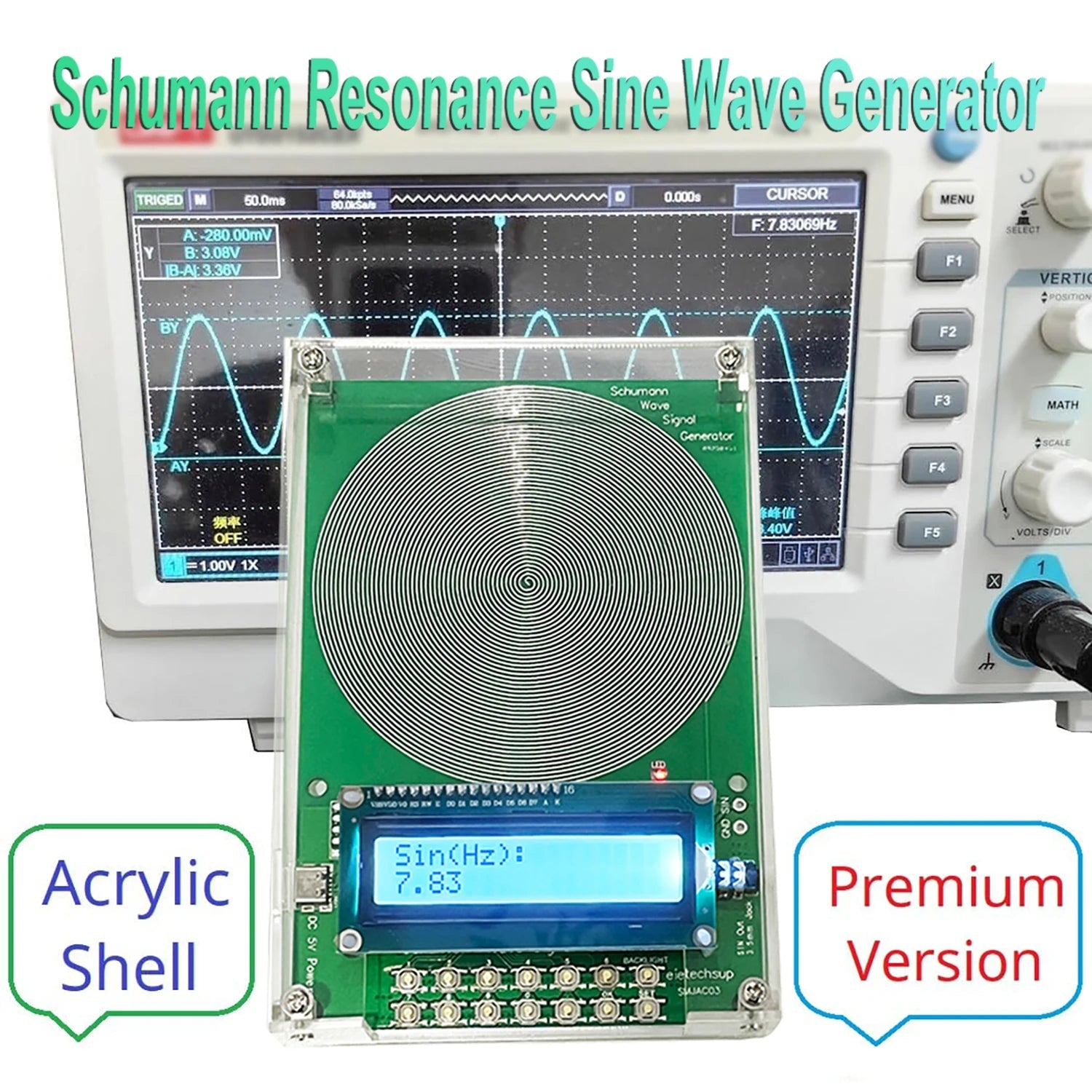

High-Precision Pure Sine Wave Output
Stable, Clean Signal Generation
The VanotCine Frequency Generator produces a smooth 3V pure sine wave output, helping minimise unwanted signal distortion during operation.
Benefits include:
-
Clean waveform generation
-
Consistent output amplitude
-
Stable signal quality
-
Reduced harmonic distortion
-
Reliable performance across the entire frequency range
Designed for applications requiring accurate signal generation.
Low-Temperature Drift Crystal Oscillators
Exceptional Frequency Stability
Precision crystal oscillators maintain highly accurate output even during extended operation.
Advantages include:
-
Reduced frequency drift
-
Stable long-term performance
-
Improved environmental stability
-
Consistent output accuracy
-
Professional-grade frequency control
Reliable performance when precision matters.
High-Precision DAC Technology
Digital Accuracy You Can Trust
The dedicated high-precision DAC chip ensures the VanotCine Frequency Generator produces accurate digital frequency output with excellent waveform consistency.
This combination of digital processing and precision hardware helps deliver dependable results for research and testing applications.

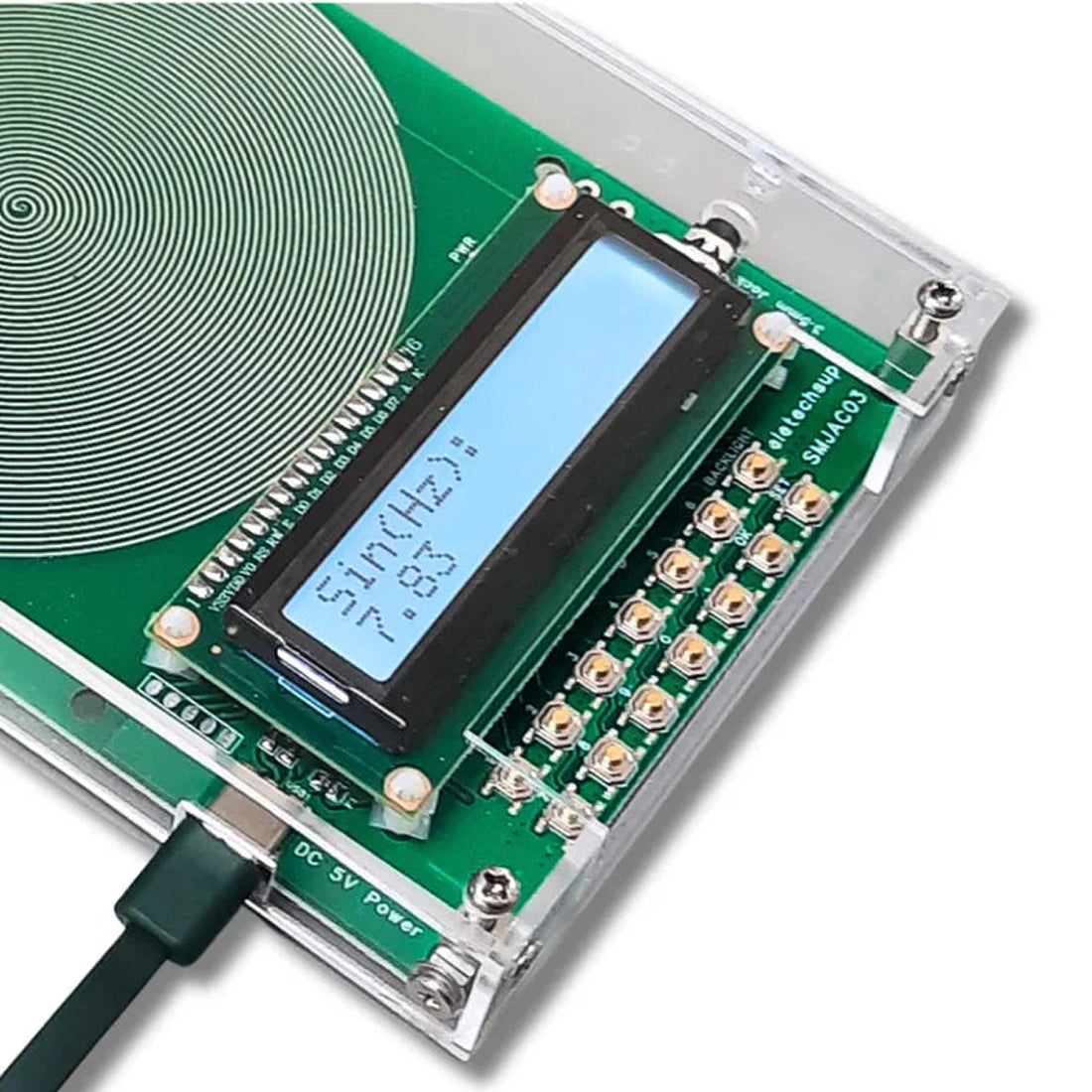

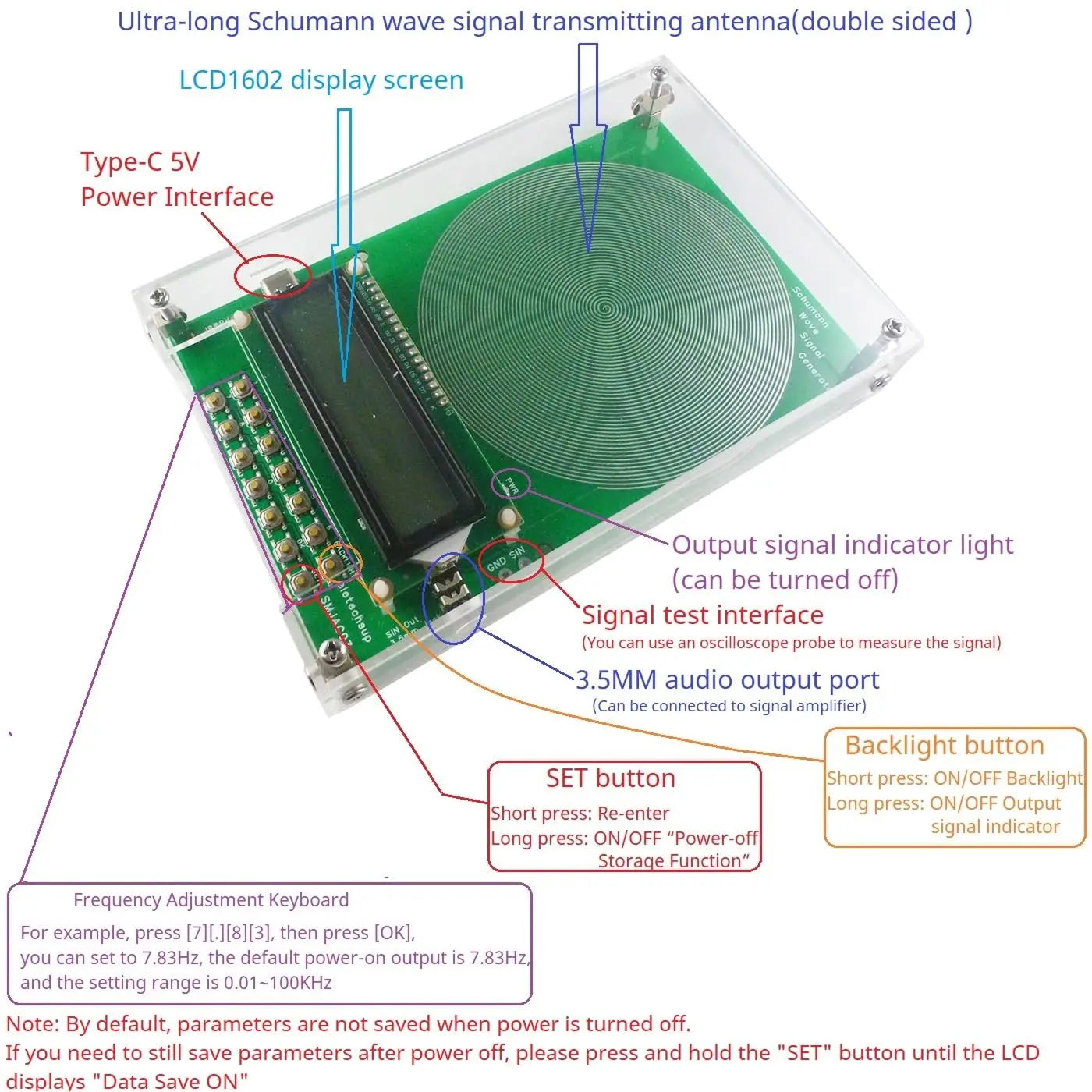

2.9-Inch Real-Time Display
Monitor Frequency Instantly
The bright 2.9-inch display provides clear visibility of operating frequency and system status.
Monitor:
-
Current frequency
-
Operating status
-
Device settings
-
Real-time adjustments
Everything remains easy to view while working.
Universal Type-C Power
Power It Almost Anywhere
The VanotCine Frequency Generator operates using a modern USB Type-C power interface with a wide DC 4–15V input range.
Compatible with:
-
USB wall chargers
-
Laptop USB ports
-
Desktop USB ports
-
USB power banks
-
Vehicle USB adapters
Portable operation without specialised power supplies.

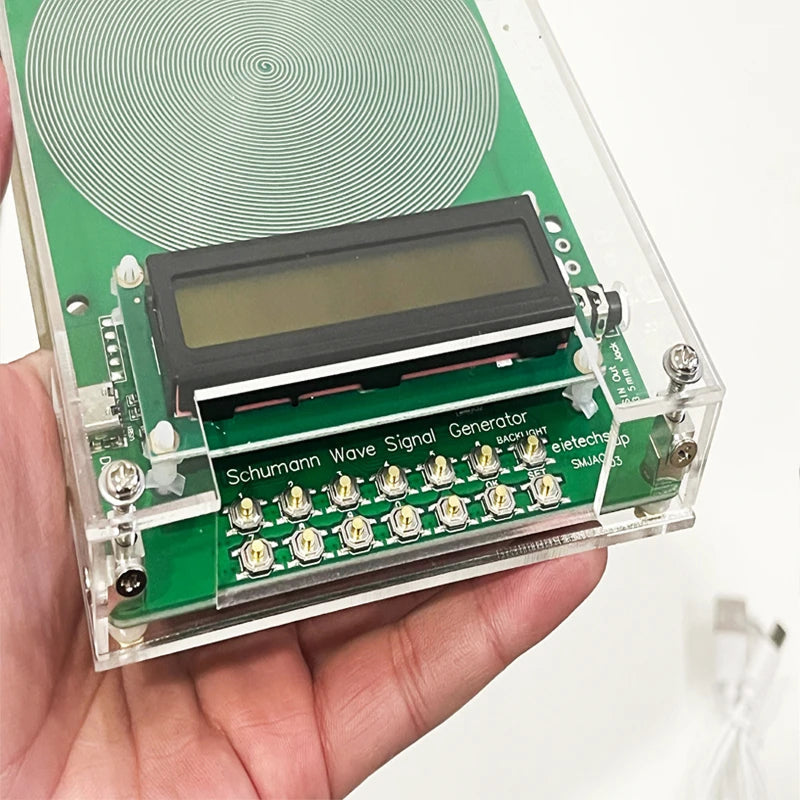

Durable Acrylic Housing
Lightweight Protection
The precision electronic components are protected inside a durable acrylic enclosure that provides:
-
Physical protection
-
Lightweight construction
-
Professional appearance
-
Easy portability
-
Desktop-ready design
Suitable for laboratories, workshops and home electronics benches.
VanotCine Frequency Generator vs Standard Signal Generators
| Feature | VanotCine Frequency Generator | Standard Generator |
|---|---|---|
| 0.01Hz–100kHz Frequency Range | ✔ | Limited |
| Pure Sine Wave Output | ✔ | Varies |
| High-Precision DAC Chip | ✔ | ✘ |
| Low-Temperature Crystal Oscillator | ✔ | ✘ |
| 2.9-Inch Display | ✔ | ✘ |
| Type-C Power | ✔ | ✘ |
| Wide DC 4–15V Input | ✔ | ✘ |
| Compact Portable Design | ✔ | ✘ |
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | VanotCine Frequency Generator |
| Frequency Range | 0.01Hz–100kHz |
| Default Frequency | 7.83Hz |
| Waveform | Pure Sine Wave |
| Signal Output | 3V Amplitude |
| Frequency Reference | Digital Crystal Oscillator |
| Oscillator Type | Low-Temperature Drift Crystal |
| DAC | High-Precision Dedicated Chip |
| Display | 2.9-Inch Screen |
| Power Interface | USB Type-C |
| Input Voltage | DC 4–15V |
| Operating Current | 9–14mA |

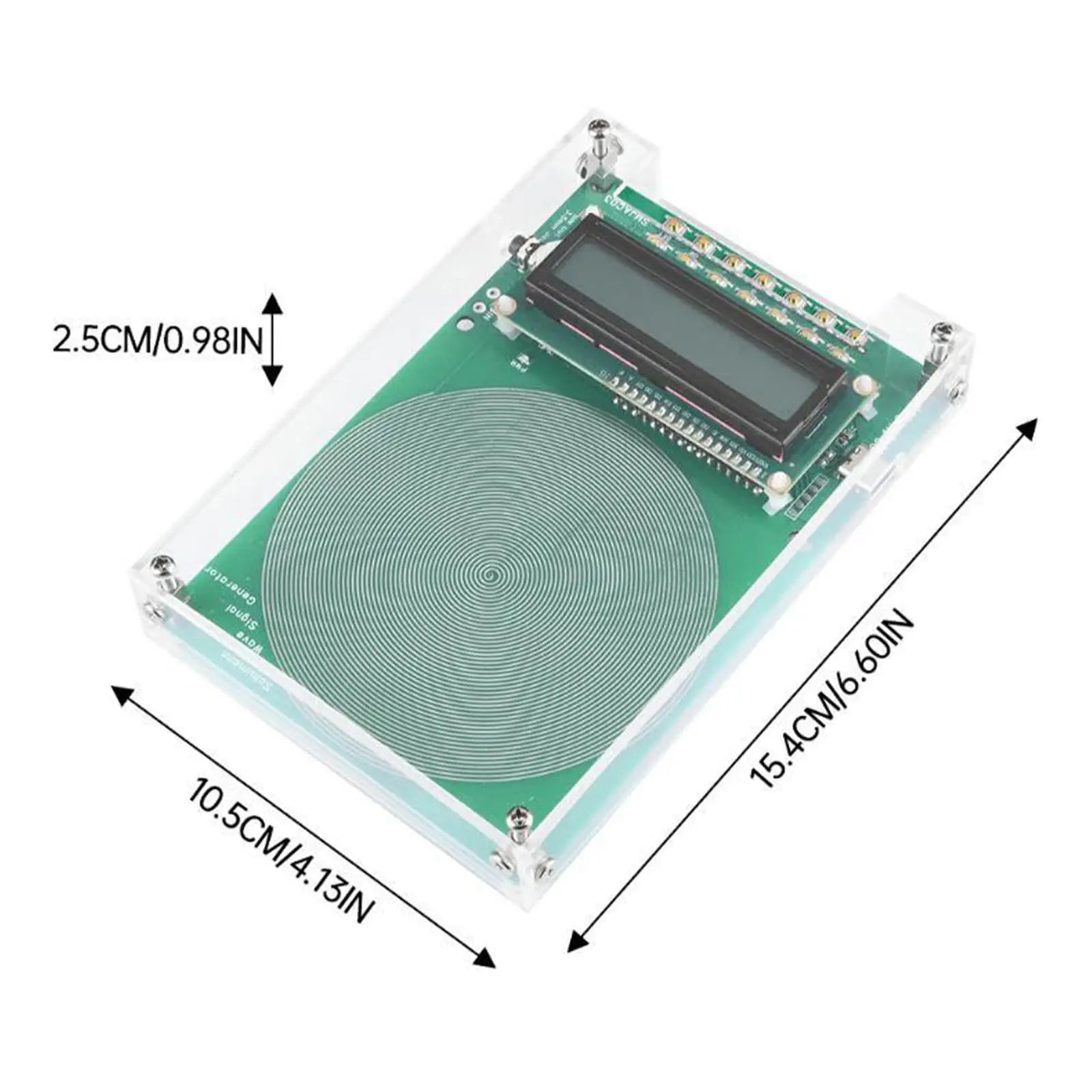

| Dimensions | 155 × 105 × 26mm |
| Housing | Acrylic Shell |

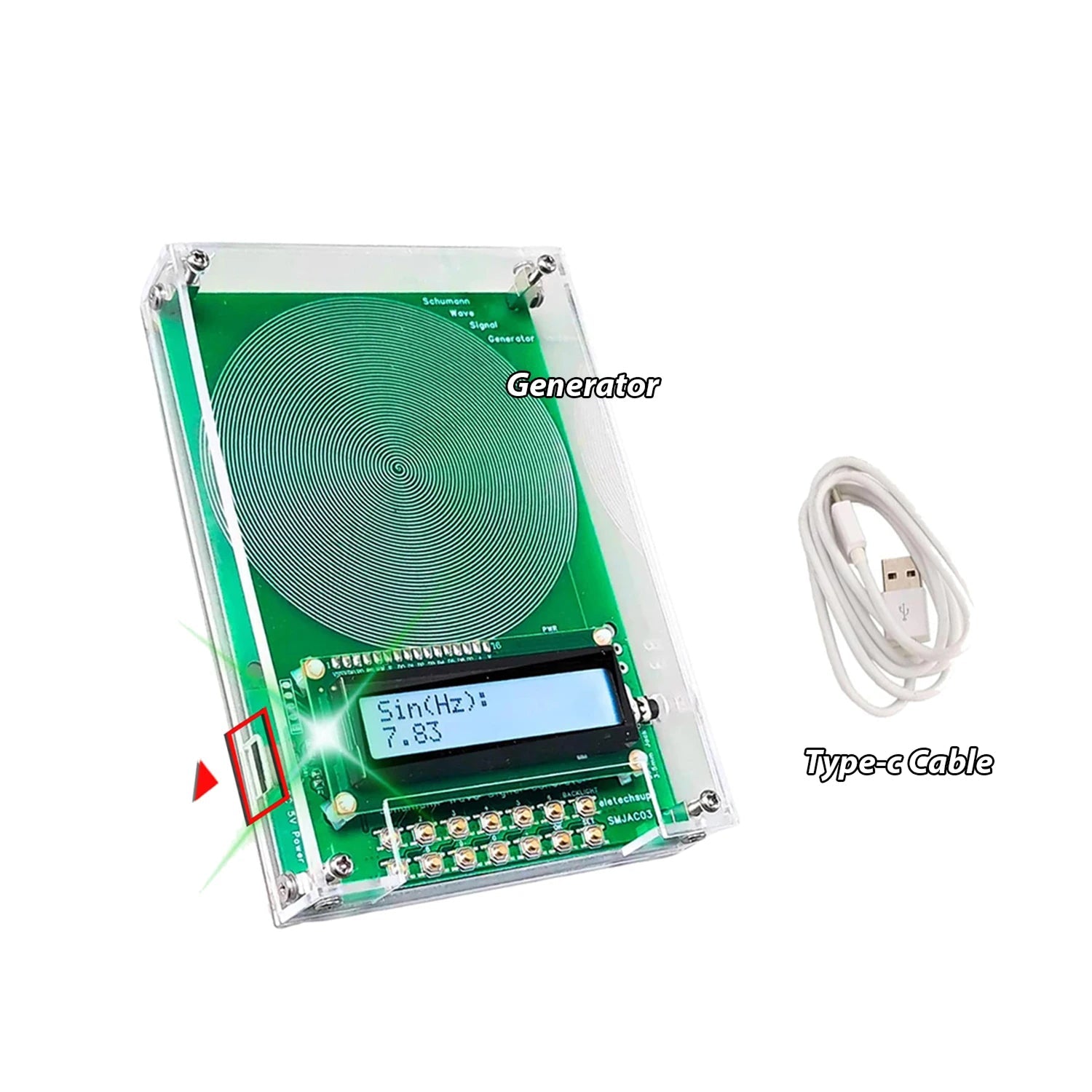

What's Included
| Package Contents | Quantity |
|---|---|
| VanotCine Frequency Generator | 1 |
| Acrylic Protective Shell* | 1 (*Shell version) |
| USB Type-C Power Cable | 1 |
| User Manual | 1 |
| Retail Packaging | 1 |

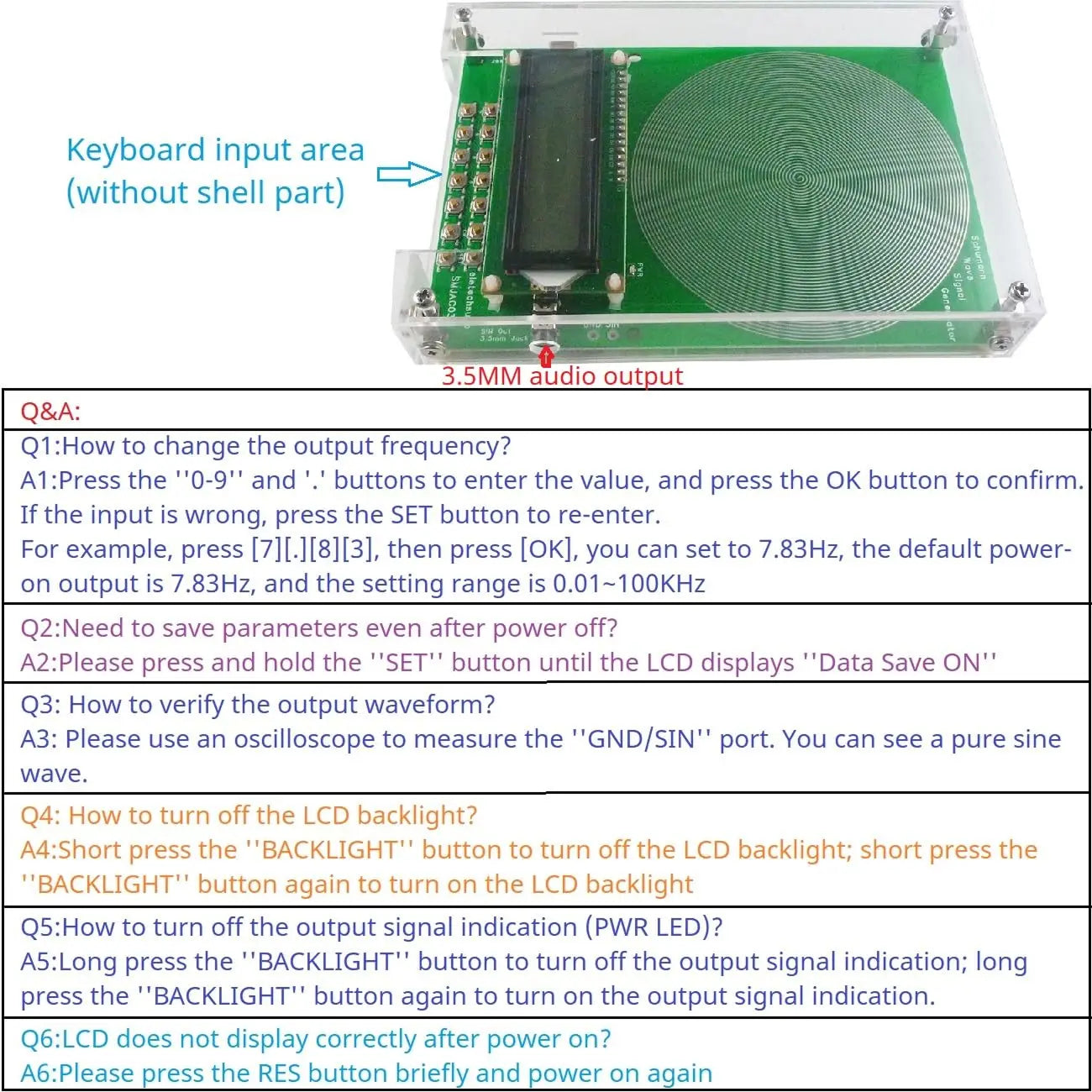

Frequently Asked Questions
What frequency range does the VanotCine Frequency Generator support?
The VanotCine Frequency Generator supports fully programmable frequencies from 0.01Hz to 100kHz, making it suitable for a wide range of testing and research applications.
Does it include a 7.83Hz preset?
Yes. The VanotCine Frequency Generator starts with a default 7.83Hz preset, which can be adjusted at any time to any supported frequency.
What waveform does it generate?
The device outputs a clean pure sine wave with a consistent 3V output amplitude across its operating range.
How is the device powered?
It uses a USB Type-C connection and accepts DC input from 4V to 15V, allowing operation from USB chargers, laptops, power banks and other compatible power sources.
Why does it use low-temperature drift crystal oscillators?
These precision oscillators help maintain stable frequency output over long operating periods while reducing changes caused by temperature variations.
Can I monitor the operating frequency?
Yes. The integrated 2.9-inch display shows the current frequency and operating information in real time.
What's the difference between the shell and shell-free versions?
The shell version includes a protective acrylic enclosure for standalone desktop use, while the shell-free version is intended for integration into custom projects or equipment.
Is the VanotCine Frequency Generator suitable for continuous operation?
Yes. Its efficient low-power design, stable crystal oscillators and quality electronic components make it suitable for extended periods of operation under normal conditions.
Achieve Precise Signal Generation with the VanotCine Frequency Generator
Designed for users who require dependable performance, the VanotCine Frequency Generator combines a 0.01Hz–100kHz programmable frequency range, default 7.83Hz preset, pure sine wave output, high-precision DAC technology, low-temperature drift crystal oscillators, digital frequency control, USB Type-C power, and a compact acrylic enclosure in one professional-grade device.
Whether you're performing electronics testing, laboratory research, educational demonstrations or experimental signal generation, the VanotCine Frequency Generator delivers the precision, stability and flexibility you need.
